3608/3612 Engine Valve Seat Inserts 1605769/1605770 Long Lasting

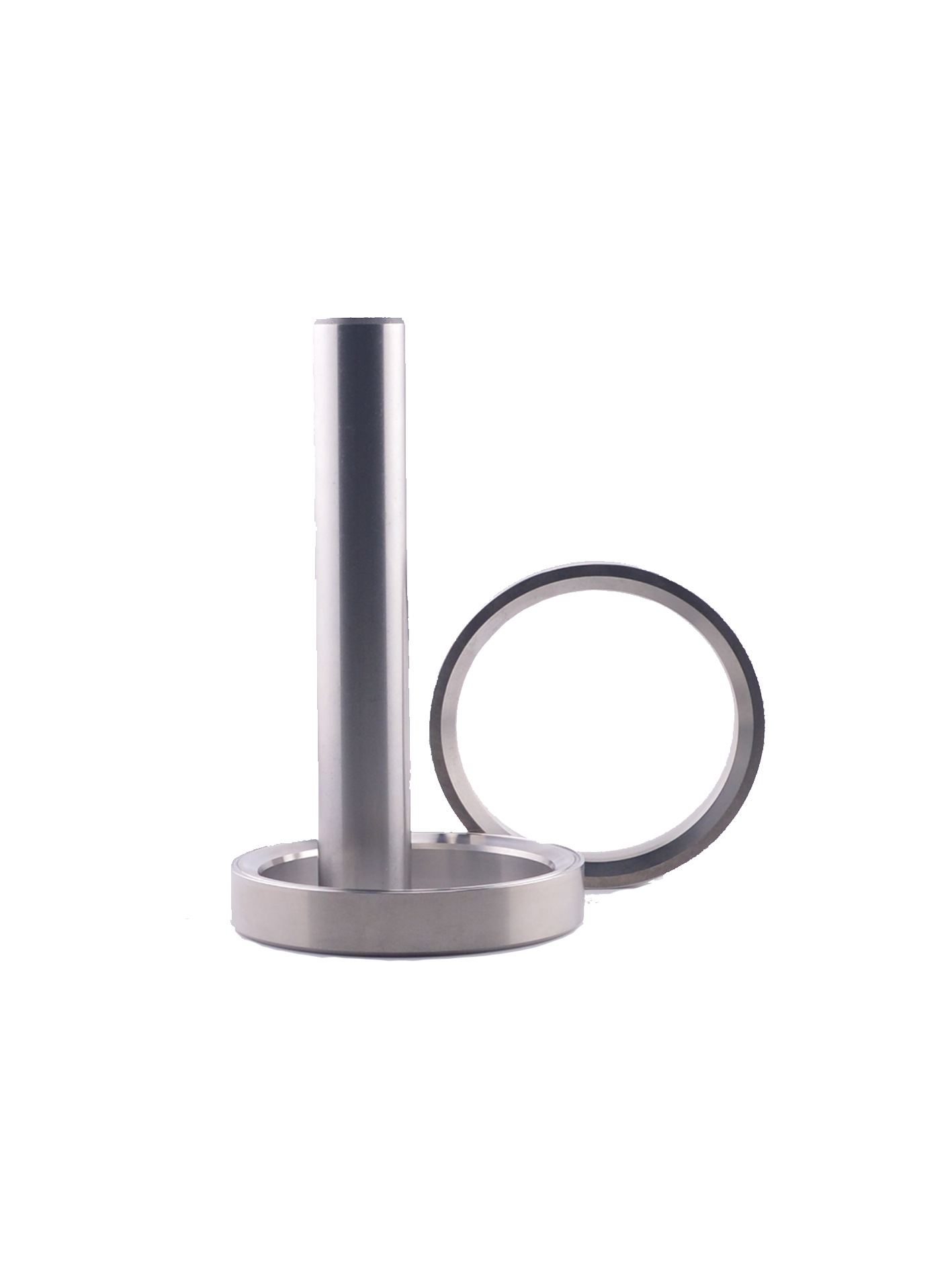

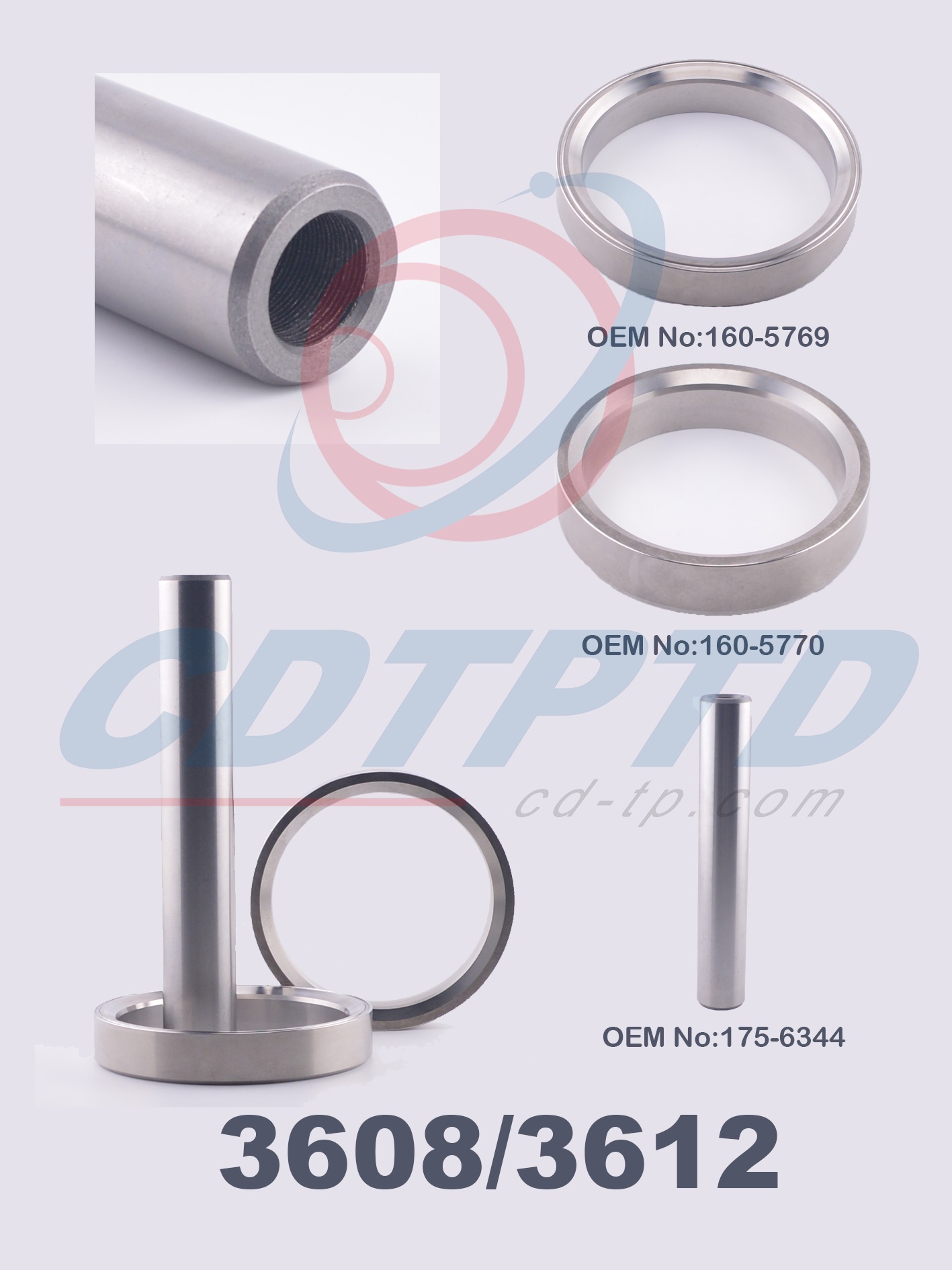

3608 / 3612 Set:

---Valve guide oem: 1756344

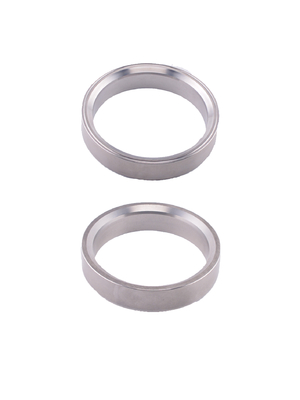

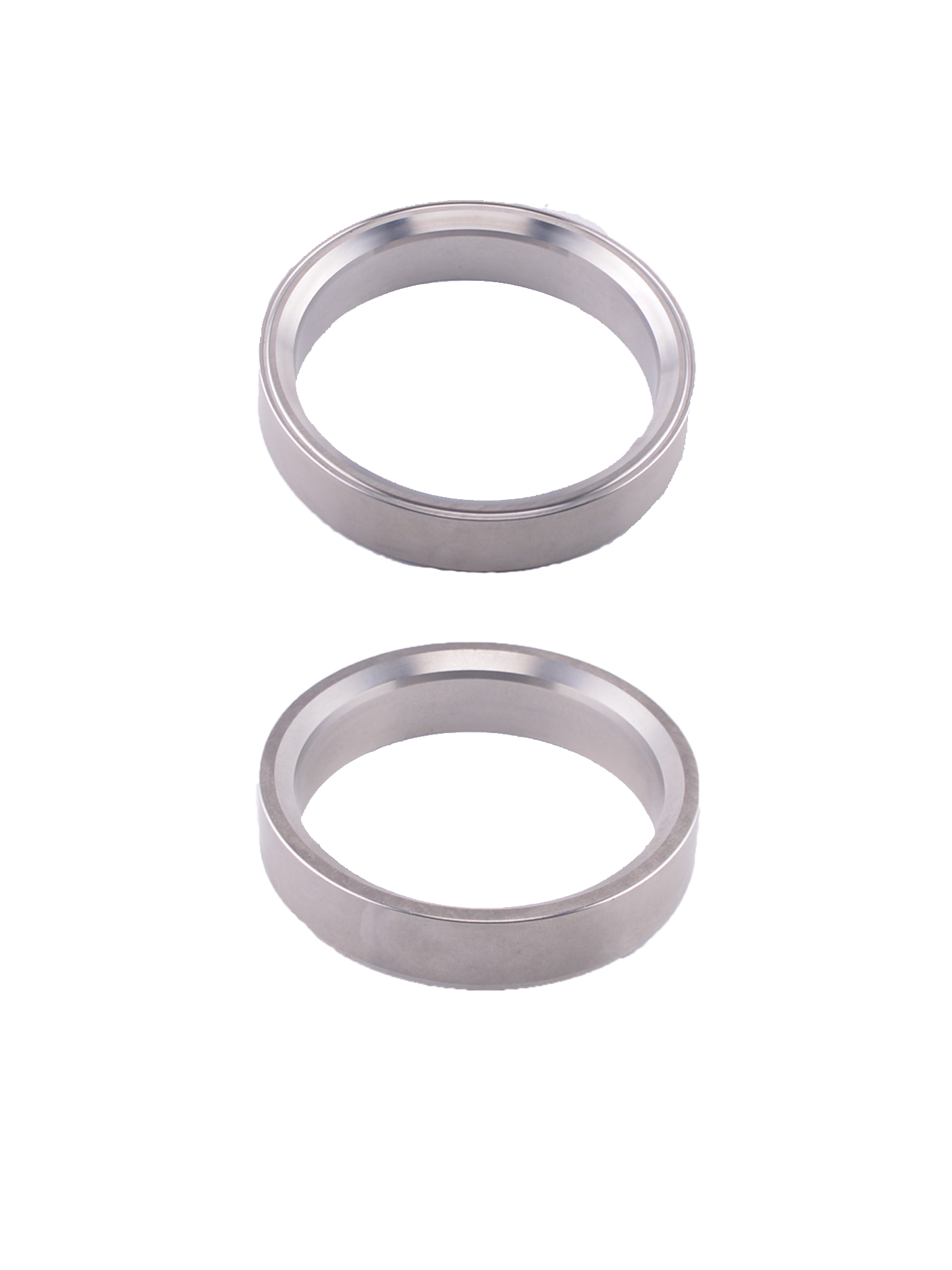

---Intake valve seat oem: 1605769(material:J125)

---Exhaust valve seat oem: 1605770 (material:J96)

Engineered to meet the rigorous demands of Caterpillar's 3608 and 3612 industrial engines, these OEM-specified valve seats (#1605769 intake / #1605770 exhaust) deliver uncompromising performance in continuous-duty applications. These precision components form the critical sealing interface between valves and cylinder heads, maintaining combustion efficiency throughout extended service intervals in the most challenging environments.

Advanced Metallurgy for Extreme Conditions:

The exhaust valve seat (1605770) utilizes a proprietary nickel-chromium-molybdenum alloy with tungsten carbide reinforcement, specifically formulated to withstand sustained 950°C (1742°F) exhaust gas temperatures while resisting thermal fatigue and corrosion. The intake seat (1605769) features a copper-impregnated iron matrix that combines exceptional thermal conductivity with superior machinability for perfect surface finishes.

Performance-Enhancing Features:

1. Exceptional Wear Resistance – The exhaust seat's composite alloy structure demonstrates 50% greater longevity than conventional materials in high-hour power generation and marine applications.

2. Optimized Thermal Performance – The intake seat's copper-rich composition provides:

   • 35% improved heat transfer compared to standard iron seats

   • More stable valve clearances during thermal cycling

   • Reduced thermal stress on cylinder heads

3. Precision Machined Surfaces – CNC-finished to 0.4-0.6μm Ra surface roughness ensures:

   • Complete circumferential valve contact

   • Consistent compression retention

   • Minimized gas leakage across all operating conditions

Technical Specifications:

• Exhaust Seat Material: Ni-Cr-Mo-WC alloy matrix

• Intake Seat Material: Cu-Fe composite with beryllium enhancement

• Hardness: 50-54 HRC (exhaust), 40-44 HRC (intake)

• Temperature Range: -50°C to 1000°C (exhaust)

• Concentricity: 99.7% minimum

Critical Applications Include:

• Continuous-duty power generation plants

• Marine propulsion and auxiliary systems

• Offshore oil and gas operations

• Mining and mineral processing

• Heavy industrial pumping applications

Documented Performance Benefits:
Field testing confirms:
• 40-45% longer service intervals compared to standard seats
• 6-8% improved fuel efficiency through superior sealing
• Reduced cylinder head temperatures in turbocharged configurations
• Lower maintenance costs through extended overhaul periods

These Caterpillar 3608/3612 valve seats represent the pinnacle of materials engineering for industrial engine applications. Available in standard configurations with options for oversized repairs, they deliver OEM-quality performance with enhanced durability for 24/7 operation. The exhaust seat's tungsten carbide reinforcement provides unmatched protection against the extreme temperatures and corrosive conditions encountered in modern high-output industrial engines.
